Lipp Steel Storage Silo Making Machine For Wastewater Treatment
Lipp Machine for Wastewater Treatment: An Efficient and Sustainable Future
As global water shortages and environmental pollution issues intensify, the significance of wastewater treatment technology becomes increasingly prominent. Among numerous innovative solutions, Lipp Machine stands out with its unique design and outstanding performance in the field of wastewater treatment.
Lipp Machine: The Fusion of Technology and Innovation
Lipp Machine, developed by the German company Lipp GmbH, is a container and system solutions expert with over 60 years of history. Its core technology, the Lipp Double-Seam System, primarily made of steel, is crafted through precise manufacturing processes to create durable, flexible, and highly customizable wastewater treatment equipment.
Sichuan Mondes Green Technology Co., Ltd. has been introducing this advanced technology from Germany since 2005 and has optimized and improved the original Lipp Machine from Germany. Through our efforts, the manufactured models are not only more user-friendly but also have a cost reduction of over 50%. Currently, we have successfully sold over 50 sets of Lipp machine both at home and abroad and have constructed over 1,000 sets Lipp spiral steel silos and Lipp storage tanks.
Main Technical Parameters
| S/N |
Parameter Category |
Technical Specifications |
Description |
| 1 |
Model |
MDS-SM40 |
Standard model of spiral steel silo forming machine |
| 2 |
Processing Capacity |
|
|
| 2.1 |
Material Thickness |
1.5 mm ~ 4.3mm |
Compatible with stainless steel, clad steel, galvanized steel, carbon steel, etc. |
| 2.2 |
Coil Width |
495mm |
Standard coil width |
| 2.3 |
Forming Speed |
3~5 m/min |
Automatically adjusted based on material thickness and silo diameter |
| 3 |
Structural Parameters |
|
|
| 3.1 |
Max. Silo Diameter |
≤40 m |
Single silo capacity up to 8000 m³ |
| 3.2 |
Max. Silo Height |
≤35 m |
Vertical precision error ≤0.1% |
| 3.3 |
Effective Width |
350mm ~ 370mm |
|
| 3.4 |
Spiral Seam Width |
40±5mm |
Double-seam interlocking technology (Lipp Double-Seam System) |
| 4 |
Material Compatibility |
|
|
| 4.1 |
Compatible Materials |
Clad steel, Stainless steel (304/316), galvanized steel (AZ270), carbon steel, etc. |
Selected based on storage media (liquids/gases/granular materials) |
| 4.2 |
Surface Treatment |
Galvanized coating (≥275g/m²), SS304/316L stainless steel liner (optional) |
Enhanced corrosion resistance |
| 5 |
Power System |
|
|
| 5.1 |
Drive Power |
27kW ~ 30kW |
Variable-frequency motor with stepless speed control |
| 6 |
Construction Efficiency |
|
|
| 6.1 |
Single Silo Construction Cycle |
5~30 days |
Duration depends on silo size and environmental conditions |
| 6.2 |
Daily Coil Processing Length |
Approx. 500m |
Continuous operation mode |
| 7 |
Environmental Adaptability |
|
|
| 7.1 |
Operating Temperature |
-20℃ ~ +50℃ |
Special coatings available for extreme environments |
| 7.2 |
Seismic Resistance Level |
Grade 8 |
Complies with international seismic standards |
| 8 |
Safety Standards |
CE, ISO 9001, EN 1090 |
Certified by EU and international quality standards |
Key Advantages of the Lipp Machine
Innovative Dual-seam Design
The Lipp Machine for Wastewater Treatment utilizes a patented spiral-bending technique to create durable, corrosion-resistant tanks with seamless structures. This design ensures zero leakage, extended lifespan, and minimal maintenance--critical for handling aggressive industrial effluents.
Rapid Installation & Modular Flexibility
Unlike traditional concrete tanks requiring months of construction, Lipp systems are prefabricated and assembled on-site in days. Their modular design allows easy expansion, adapting to fluctuating wastewater volumes without downtime.
Cost-Effective Compliance
With built-in anaerobic digestion and aerobic treatment capabilities, the Lipp Machine reduces sludge production by up to 40% and cuts energy consumption by 30%. This translates to lower operational costs and compliance with global environmental certifications like ISO 14001.
Construction Procedure

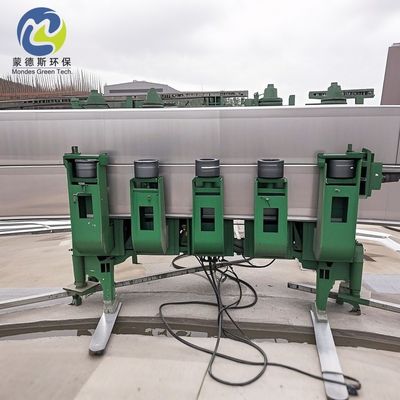

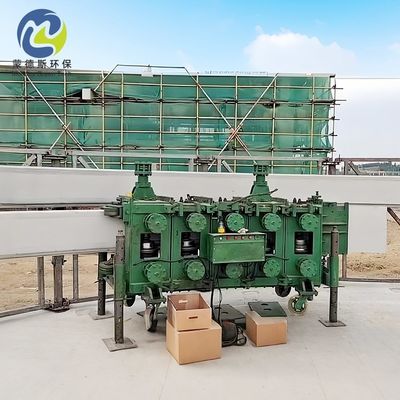

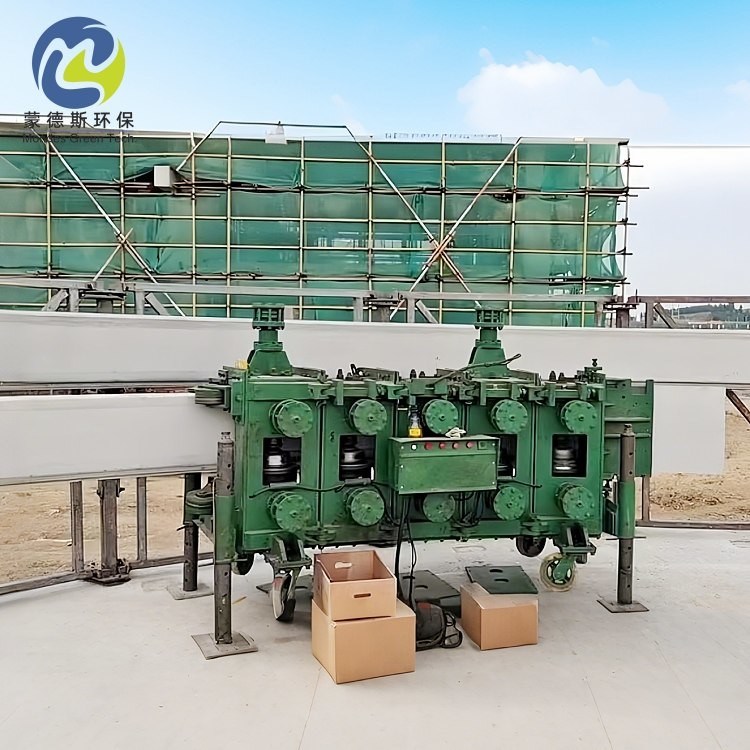

- Positioning of Lipp silo Steel strip forming machine

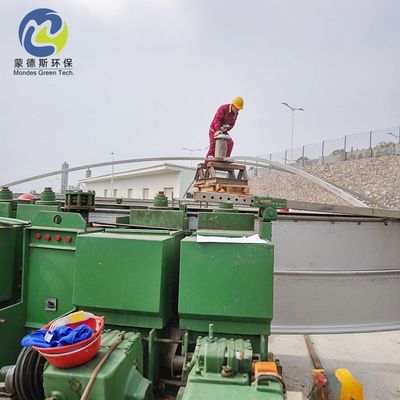

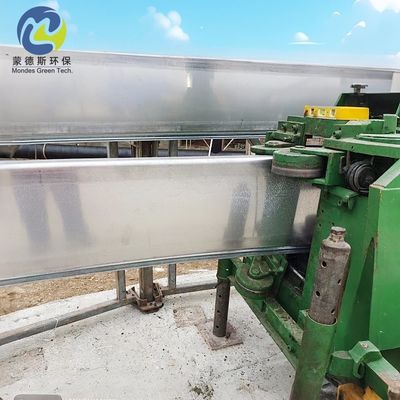

- Coiling Steel Plate
- Silo roof Installation
- Silo Lifting
- Silo Lowering and Fixing
- Corridor and Auxiliary Equipment Installation
Proven Success Across Industries
- Food & Beverage: A dairy plant in Malaysia reduced wastewater treatment costs by 25% within 6 months of installing the Lipp tank.
- Mining: A Australia copper mine achieved zero discharge targets using Lipp's modular bioreactors, avoiding $2M in annual fines.
- Municipalities: Cities in Southeast Asia now deploy Lipp machines for decentralized sewage treatment, slashing infrastructure investments by 50%.
Future-Proof Your Operations
The Lipp Machine isn't just a product--it's a partnership. Our team provides 24/7 remote monitoring, and lifetime technical support to ensure your system operates at peak efficiency.
