Chemical Storage FBE Bolted Tanks: Safeguarding Hazardous Liquids with Zero-Leak Technology
Discover how FBE-coated bolted tanks store aggressive chemicals safely for decades. Compliant with ASME, API 650, and REACH standards.
Chemical manufacturing and processing industries lose $12 billion annually due to storage tank failures, per the American Chemical Council (2023). Traditional solutions like rubber-lined or stainless steel tanks struggle with:
- Permeation Leaks: Organic solvents diffuse through polymer liners.
- Stress Corrosion Cracking (SCC): Chlorides in HCl or NaClO degrade stainless steel welds.
- Thermal Degradation: Thermal cycling (-50°C to 200°C) delaminates coatings.
FBE (Fusion-Bonded Epoxy) bolted tanks overcome these risks through non-porous molecular barriers and modular, crevice-free designs, making them the gold standard for sulfuric acid, caustic soda, and VOC storage.
Engineering Excellence: How FBE Bolted Tanks Work
Tank Architecture & Materials
- Panels: ASTM A516 Gr.70 carbon steel (ultimate tensile strength 70 ksi) coated with 80-200 μm FBE.
- Coating Process:
- Surface Prep: Abrasive blast-cleaned to Sa 2.5 (ISO 8501-1).
- Electrostatic Spray: 95% transfer efficiency ensures zero holidays.
- Thermal Cure: 200°C curing forms cross-linked epoxy matrix.
- Bolting System: 316L stainless steel bolts with FFKM gaskets (Chemraz® 505 for pH 0-14).
Chemical Resistance Performance
| Chemical |
Concentration |
Temperature |
FBE Performance (ASTM D543) |
| Sulfuric Acid |
98% |
60°C |
No blistering (1,000 hrs) |
| Sodium Hydroxide |
50% |
80°C |
≤1mm/year corrosion rate |
| Xylene |
100% |
40°C |
0% weight change |
| Hydrogen Peroxide |
30% |
25°C |
Passes ASTM D3948 |
Competitive Advantages Over Alternatives
| Parameter |
FBE Bolted Tanks |
FRP Tanks |
PVDF-Lined Steel |
| Permeation Resistance |
Zero (non-porous) |
Moderate (0.1 g/m²/day) |
High (0.05 g/m²/day) |
| Lifespan |
20+ years |
10-15 years |
15-20 years |
| Repairability |
On-site epoxy patching |
Full tank replacement |
Limited weld repairs |
| Cost Over 20 Years |
USD1.8M |
USD3.2M |
USD2.5M |
Source: 2024 Chemical Storage Tank Lifecycle Report
Critical Applications Across Industries
Petrochemical & Refining
- Crude Oil Processing: Resists naphthenic acid corrosion (TAN ≤10).
- Amine Storage: Withstands H₂S-loaded methyldiethanolamine (MDEA).
- Case Study: A Texas refinery reduced downtime by 400 hours/year after switching to FBE tanks for HF alkylation units.
Pharmaceutical & Specialty Chemicals
- API Intermediate Storage: USP Class VI-certified FBE for GMP compliance.
- Solvent Recovery: Compatible with DMF, and THF.
Water Treatment & Mining
- HCl/H2SO4 Dosing Tanks: 3-layer FBE system for splash zone protection.
- Cyanide Leachate Storage: Zero permeation meets OSHA 1910.156.
Global Compliance & Certifications
- ASME RTP-1: Reinforced thermoplastic corrosion barriers.
- API 650 Appendix H: External floating roof tanks for VOCs.
- EU REACH/CLP: SVHC-free coatings (substances of very high concern).
- ATEX 2014/34/EU: Explosion-proof designs for flammable liquids.
Installation & Maintenance Best Practices
Rapid Deployment for Turnarounds
Foundation Design:
- Concrete bund walls (200mm thick, 28 N/mm² strength).
- Spill containment for 110% tank volume (EPA 40 CFR 264.195).
Assembly:
- Bolt panels using ultrasonic torque verification (±3% accuracy).
Leak Testing:
- Helium mass spectrometry (sensitivity 1×10⁻⁹ mbar*L/s).
Predictive Integrity Management
- Robotic Inspections:
- Magnetic flux leakage (MFL) for wall thickness mapping.
- UAV drones with LiDAR for 3D coating defect modeling.
- Coating Health Monitoring: Electrochemical impedance spectroscopy (EIS) for early degradation alerts.
Innovations in Chemical-Resistant FBE Tech
- pH-Responsive Coatings: Color-changing FBE indicates chemical permeation (patent-pending).
- Nanocomposite Epoxy: Graphene-enhanced FBE reduces permeability by 90%.
- Self-Healing Systems: Microvascular networks release epoxy precursors on crack detection (ASTM D7234).
Future-Proofing Chemical Storage with FBE Technology
In an industry where leaks equate to environmental fines and reputational ruin, FBE bolted tanks deliver zero-permeation security, regulatory confidence, and 50% lower lifecycle costs versus alternatives. From sulfuric acid to styrene monomer storage, this technology is redefining chemical safety.

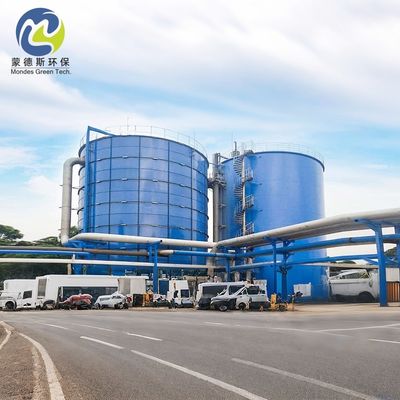

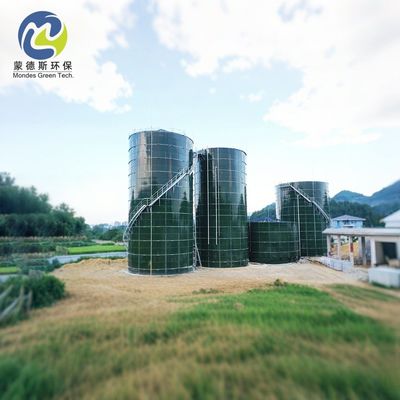

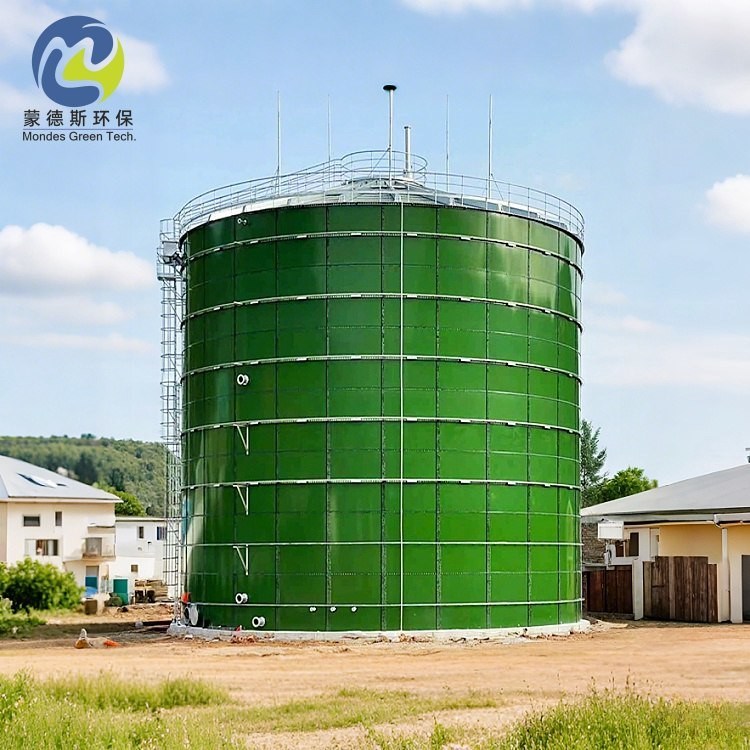

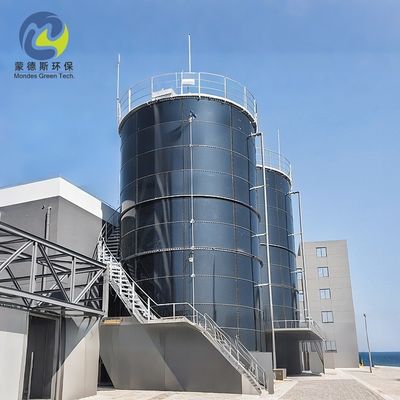

Product Show
