FBE Fusion Bonded Epoxy Bolted Tank For Fire Protection Water Storage Systems
FBE Tanks for Fire Protection Systems: Engineering Resilience Against Time and Flames
Product Overview
Discover how FBE-coated tanks ensure fail-safe water storage for fire protection, with 20+ year lifespans, NFPA 22 compliance, and zero corrosion risks.
Fire protection systems are only as reliable as their water storage tanks. Yet, 43% of tank failures in fire emergencies stem from undetected corrosion, according to NFPA research (2023). Traditional solutions like red steel or concrete tanks face critical vulnerabilities:
- Rust-Induced Collapse: Corrosion reduces structural integrity, risking catastrophic tank rupture.
- Microbial Contamination: Biofilm in corroded tanks clogs sprinkler systems during activation.
- Chemical Degradation: Fire suppressants like AFFF foam accelerate metal oxidation.
FBE (Fusion-Bonded Epoxy) coated tanks address these risks through molecular-level corrosion resistance, making them the backbone of modern fire safety infrastructure.
FBE Tank Technology: Built for Firefighting Demands
a. Multi-Layer Defense Architecture
- Base Steel: ASTM A36 carbon steel (yield strength 36 ksi) with 6-40 mm thickness.
- FBE Coating: 80-200 μm epoxy layer applied via electrostatic spray and cured at 200°C, achieving:
- Adhesion Strength: ≥5 MPa (ISO 4624 standard).
- Chemical Resistance: Withstands pH 3-12, chlorine (≤5 ppm), and AFFF foam surfactants.
- Topcoat Options:
- Aliphatic Polyurethane: UV-resistant for rooftop installations.
- Intumescent Coatings: Expand under heat to protect steel at 200°C+ (EN 13381-8 certified).
Bolted vs. Welded Designs
| Feature |
FBE Bolted Tanks |
Welded Steel Tanks |
| Installation Time |
2-4 weeks (modular assembly) |
8-12 weeks (field welding) |
| Corrosion Risk |
Zero (no heat-affected zones) |
High (weld seam vulnerability) |
| Expansion Capacity |
Add/remove panels in 48 hours |
Requires cutting and rewelding |
Performance Benchmarks: Why FBE Outperforms
a. Accelerated Aging Tests
- Salt Spray Resistance: 15,000+ hours (ASTM B117) vs. 1,200 hours for galvanized steel.
- Hydrostatic Stability: 2x design pressure (per NFPA 22 Section 4.3) without deformation.
- Fire Resistance: Coating maintains adhesion at 150°C for 2+ hours (UL 1709 rapid-rise fire test).
b. Lifecycle Cost Analysis
| Tank Type |
Initial Cost (50,000 gal) |
30-Year Maintenance |
Total Cost |
| FBE-Coated Steel |
USD220,000 |
USD15,000 |
USD235,000 |
| Galvanized Steel |
USD180,000 |
USD280,000 |
USD460,000 |
| Concrete + Liner |
USD150,000 |
USD410,000 |
USD560,000 |
Source: 2024 Fire Protection Engineering Handbook
Critical Applications in Fire Safety
a. High-Rise Building Sprinkler Reservoirs
- Challenges: Rooftop exposure to UV, acid rain, and thermal cycling.
- FBE Solution: UV-stable aliphatic topcoat with -40°C freeze-thaw resistance.
- Case Study: A Dubai skyscraper replaced galvanized tanks with FBE units in 2021, eliminating 7 annual maintenance shutdowns.
b. Industrial Firewater Storage
- Chemical Plants: Resists hydrocarbon fires and acid spills (API 650 Appendix F).
- Airports: Withstands JP-8 jet fuel exposure (MIL-DTL-83133H compliant).
c. Wildfire Defense Systems
- Underground Tanks: 3-layer FBE system (primer, mid-coat, abrasion-resistant topcoat) for soil stress.
- Mobile Water Buffers: Bolt-modular designs enable rapid deployment in fire-prone regions.
Compliance with Global Fire Codes
- NFPA 22: Standard for water tanks for private fire protection.
- FM Global DS 7-1: Approval for corrosion-resistant coatings.
- EN 12845: Fixed firefighting systems (European installations).
- AS 2304: Australian standard for firefighting water storage.
Installation & Maintenance Protocols
Rapid Deployment for Emergency Upgrades
- Foundation: Reinforced concrete ringwall (28-day compressive strength ≥3,000 psi).
- Assembly: Bolt panels with 316 SS hardware (torque ±5% of 90 Nm).
- Testing:
- 72-hour hydrostatic test at 1.5x working pressure.
- Eddy current inspection for coating holidays.
Future Innovations in Fire Protection Tanks
- Thermochromic Epoxy: Color-changing coatings indicate overheating pre-ignition.
- Self-Healing FBE: Microvascular networks release epoxy precursors on crack detection.
- Graphene-Enhanced Coatings: 2x abrasion resistance for wildfire debris impact.
Fortifying Fire Safety with FBE Tank Technology
In a world where climate change intensifies fire risks, FBE-coated tanks provide zero-compromise reliability, code-compliant performance, and 20+ years service life. From urban high-rises to remote wildfire zones, this technology ensures water storage integrity when seconds count.

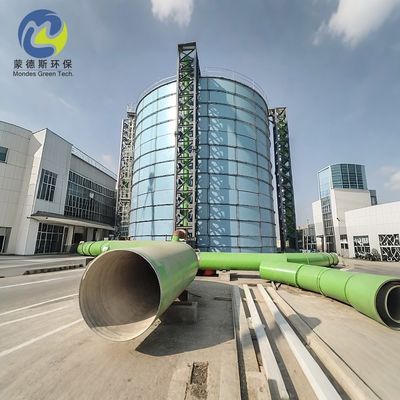

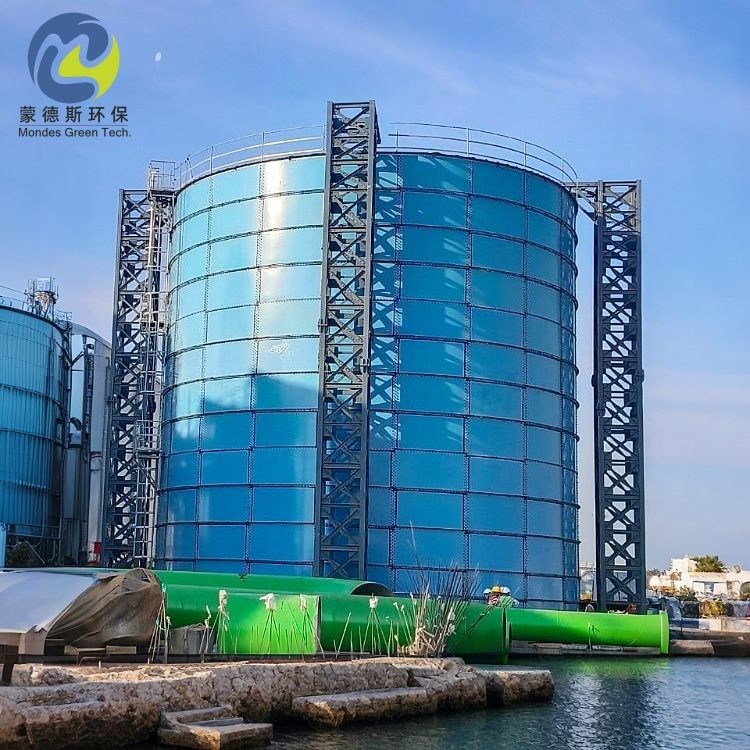

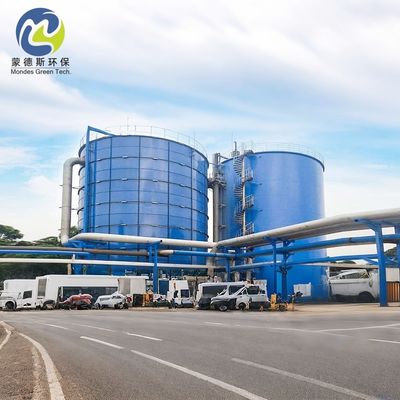

Product Show
