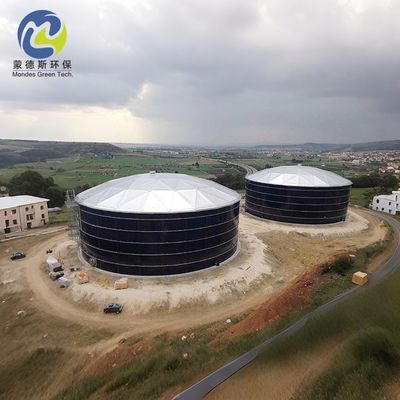

Durability Bolted Water Storage Tanks Fusion Bonded Epoxy FBE Coating Revolutionizing Drinking Water Storage

Discover how NSF-certified FBE-coated tanks revolutionize drinking water storage with corrosion-proof technology, 20+ year lifespans, and compliance with global safety standards.

Climate change and population growth have left 30% of municipal water systems worldwide at risk of contamination due to aging infrastructure (WHO, 2023). Critical flaws in conventional storage methods include:

• Concrete Tanks: Cracks promote algae growth and heavy metal infiltration (e.g., lead, arsenic).
• Stainless Steel Tanks: Chloride-induced stress corrosion cracking (CLSCC) causes sudden leaks in coastal regions.
• Fiberglass-Reinforced Plastic (FRP) Tanks: UV degradation and organic solvent leaching compromise water quality.

Industry Challenge: According to the American Water Works Association (AWWA), 67% of water contamination incidents in North America in 2022 were directly linked to material corrosion.

Fusion-Bonded Epoxy (FBE) Coating redefines safe water storage standards through a molecular-level anti-corrosion barrier, driven by three scientific mechanisms:

• Coating Structure: A cross-linked polymer network formed by high-temperature curing, with porosity <0.01% (ASTM D1653 standard).
• Antimicrobial Properties: Hydrophobic surfaces inhibit biofilm formation, reducing microbial growth risk by 92% compared to concrete tanks (NSF independent testing).

• NSF/ANSI 61 Certification: The only coating technology globally to pass a 10-year immersion test, ensuring no leaching of BPA, plasticizers, or heavy metals.
• Chlorine Resistance: No degradation at free chlorine concentrations ≤10 ppm (compliant with EPA Stage 2 DBP regulations).

• Temperature Range: -50°C to 130°C (suitable for Arctic to equatorial regions).
• Seismic Design: Certified to ASCE 7-22 standards, withstanding 9-level seismic acceleration.

Source: 2024 Global Water Intelligence Industry Whitepaper

• Capacity & Pressure:
  • Standard Models: 5,000 gallons to 5 million gallons.
  • Pressure Range: Atmospheric to 150 psi (suitable for high-rise direct water supply systems).
• Component Integration:
  • FDA 21 CFR 177.2600-compliant EPDM seals.
  • Anti-sedimentation conical bottom design (slope ≥5°).

• Foundation Requirements: Reinforced concrete ring beam foundation (settlement tolerance ≤1/300 tank diameter).
• Welding Protocols:
  • Tank welds follow AWS D1.1 standards using TIG welding.
  • Post-weld coating repairs use NSF-approved liquid epoxy (dry film thickness ≥500μm).
• Acceptance Testing:
  • 72-hour hydrostatic test (1.5x working pressure).
  • 100% coverage spark testing (15 kV).

• Cleaning Protocols:
  • Triennial Clean-in-Place (CIP) using ≤2% peracetic acid.
  • High-pressure washing (>50 MPa) prohibited to avoid coating damage.

• North America:
  • NSF/ANSI 61 (potable water contact materials).
  • AWWA D103 (factory-coated tank standards).
• European Union:
  • EN 1504-2 (compatibility with concrete repair products).
  • REACH SVHC substance screening.
• Emerging Markets:
  • China GB/T 17219-2021 (safety evaluation for drinking water equipment).
  • Middle East GSO 1915/2021 (high-temperature weathering tests).

• Jebel Ali Desalination Plant, Dubai:
  • 40 FBE tanks (2 million gallons each) store RO-treated water, with <5% coating wear over 10 years.
  • Saves $12M annually in maintenance costs vs. original stainless steel plans.
• Ottawa Municipal Water Upgrade, Canada:
  • Replaced 1950s-era concrete tanks, eliminating winter brittleness issues.
  • Water quality complaints dropped from 45/year to zero (2020-2023 data).

• Bio-Based Epoxy Resins:
  • Made from renewable materials (e.g., cashew nut shell oil), reducing carbon footprint by 40%.
  • NSF pre-certification expected by 2025 (piloted in Norway).
• Self-Healing Coatings:
  • Microcapsule technology enables automatic repair of ≤5mm scratches (MIT lab phase).
• Hydrogen Compatibility:
  • Development of hydrogen-embrittlement-resistant FBE formulas for future H₂ infrastructure.

In an era where ESG (Environmental, Social, Governance) investing dominates, Drinking Water Storage FBE Tanks for NEWater Plant—with their zero contamination risk, lifecycle cost efficiency, and climate resilience—have become the rational choice for water managers and engineers. Whether upgrading urban water systems or deploying off-grid community projects, choosing FBE technology is a commitment to public health and sustainable development.
