Name: UV resistant Dual Membrane Bio Gas Balloon Mounted On Digester For Wastewater Treatment
Brand: Sichuan Mondes Green Technology Co.,Ltd
SKU: MDS-TMG1000
Availability: InStock

Home Products Biogas Holder Balloon

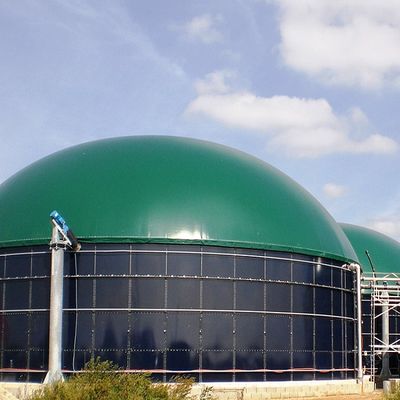

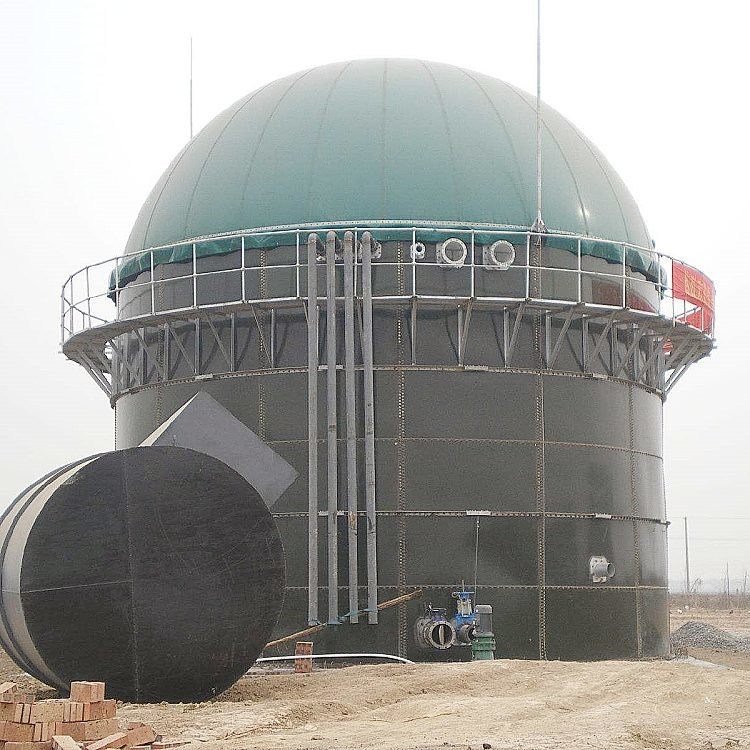

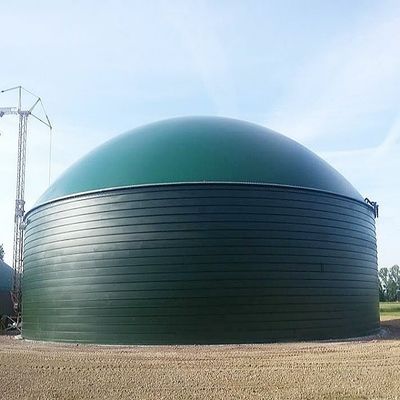

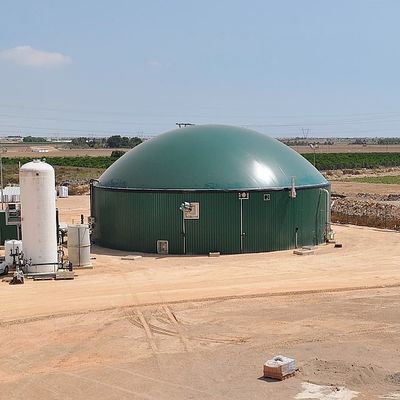

UV resistant Dual Membrane Bio Gas Balloon Mounted On Digester For Wastewater Treatment

Product Details:

Place of Origin:	China
Brand Name:	MDS
Certification:	CE, ISO9001:2015
Model Number:	MDS-TMG1000

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Please contact us
Packaging Details:	Standard export wooden box
Delivery Time:	5~60 days
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now Chat Now

Detailed Product Description

Durability:	UV-resistant	Safety:	Safe To Use
Installation:	Easy To Install	Capacity:	Up To 10,000 Cubic Meters
Efficiency:	High Efficiency	Maintenance:	Low Maintenance
Usage:	Continuous Usage	Inflation Method:	Methane Gas
Environmental Impact:	Eco-friendly	Cost:	Cost-effective
Highlight:	dual membrane bio gas balloon , uv resistant bio gas balloon , uv resistant biogas balloon storage

Dual Membrane Biogas Balloon Mounted On Digester For Wastewater Treatment

Optimize Energy Management With Dual Membrane Biogas Balloon Mounted On Digester

Product Overview

The MDS Dual Membrane Biogas Balloon represents an efficient storage solution for digester gas, featuring low total cost of ownership. This system offers easier installation, lower initial capital expenditures, and reduced operational costs compared to alternative gas storage methods. Its innovative design enables variable gas storage within the inner membrane while maintaining constant pressure during both gas production and utilization, with the air-inflated outer membrane providing necessary gas pressure and protection.

Constructed from advanced cross-woven PVC-coated fabric with UV protection, the outer membrane withstands harsh weather conditions including extreme temperatures, heavy rainfall, and strong winds. An ultrasonic sensor at the sphere's center continuously monitors stored gas volume, enabling real-time energy management decisions.

This system optimizes gas utilization for powering generators and heating systems while reducing 'flaming' emissions from digesters. It supports sustainability initiatives by enabling efficient use of renewable energy sources and reducing reliance on electric grid power.

Main Technical Parameters

S/N	Items	Parameter Values
1	Capacity	Customized
2	Design pressure	3mbar~20mbar
3	Operating pressure	3mbar~15mbar
4	Outer membrane thickness	0.74-1.20mm
5	Inner membrane thickness	0.74~1.20mm
6	Max. wind load	32.6m/s
7	Max. snow load	30kg/m²
8	Applied temperature	-30℃ to +70℃
9	Design service life	≥20 years
10	Weld seam width	≥70mm
11	Methane permeability	≤200cm³ /m²d0.1MPa (23℃, 65% R.H.)
12	Flame retardancy	B1
13	Warranty	10 years
14	Country of Origin	China

Advantages

High safety factor: Engineered for extreme conditions with overpressure safety valve and biogas leak detection system.
No pollution: Eliminates phenol-laden wastewater generation compared to traditional wet gas tanks.
Long service life: Inner membrane lasts over 25 years, outer membrane over 20 years.
Convenient installation: Requires only basic concrete foundation and can be installed within days.
Cost efficiency: Complete volume utilization with minimal weight (under 5 tons) reduces foundation requirements.
Temperature adaptability: Operates effectively from -30℃ to +70℃ without additional systems.
Minimal maintenance: Self-cleaning capabilities and corrosion-resistant materials.
Environmental sustainability: Minimal waste production with excellent material recyclability.
Stability: Advanced control technologies and robust structural design resistant to seismic events.
High utilization rate: Achieves full output efficiency in gas utilization.

Quality Service and Warranty

100% quality testing before delivery
Professional aging testing over 8 hours
Function testing for every process
2 years warranty for whole set equipment
Free repair for outer/inner membrane within 10 years
Free replacement for membranes within 3 years

Applications

Livestock farm
Brewery wastewater treatment
Beer wastewater treatment plant
Paper mill wastewater treatment
Urban sewage treatment
Garbage disposal
Food waste treatment
Food wastewater treatment
Crops' waste treatment
Food factory sewage treatment

Product Show
