Name: Free Standing Biogas Balloon Dual Membrane 2000m3 For Energy Generation
Brand: Sichuan Mondes Green Technology Co.,Ltd
SKU: MDS-GMG6000
Availability: InStock

Home Products Biogas Holder Balloon

Free Standing Biogas Balloon Dual Membrane 2000m3 For Energy Generation

Product Details:

Place of Origin:	China
Brand Name:	MDS
Certification:	CE, ISO9001:2015
Model Number:	MDS-GMG6000

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Please contact us
Packaging Details:	Standard export wooden box
Delivery Time:	5~60 days
Payment Terms:	T/T,L/C,MoneyGram,Western Union
Supply Ability:	20 sets per month

Contact Now Chat Now

Detailed Product Description

Size:	Customized	Capacity:	20m3 - 20,000m3
Temperature Range:	-30°C To 70°C	Uv Resistance:	≥6
Warranty:	2 Years	After Warranty Service:	Video Technical Support
Gas Storage:	Biogas, Natural Gas, Coal-bed Gas, CO2, Etc.	Pressure Range:	3mbar~20mbar
Service Life:	25 Years	Installation Duration:	3-15 Days
Material:	High-strength Polyester Fabric With PVC Coating	Applicable Industry:	Biogas And Wastewater
Highlight:	free standing biogas balloon , biogas balloon dual membrane , 2000m3 biogas holder balloon

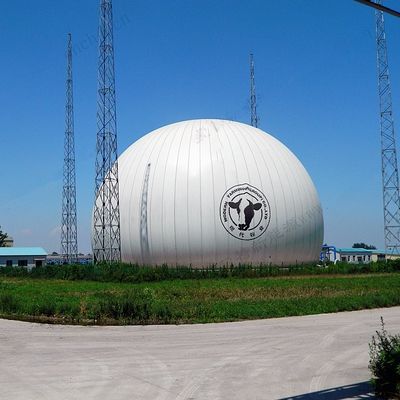

2000m³ Free Standing Dual Membrane Biogas Balloon For Energy Generation

Product Overview

The 2000m³ Free Standing Dual Membrane Biogas Balloon comprises an outer membrane, along with an inner and a bottom membrane that collectively form the actual gas space. This innovative design allows for efficient storage of gases such as biogas or natural gas in various applications, including energy generation and waste management.

A continuously operating support air blower introduces air into the interstitial space between the inner and outer membranes, maintaining constant gas pressure irrespective of supply and withdrawal fluctuations. The blower is designed to operate under varying environmental conditions, ensuring reliability even during adverse weather scenarios.

The supporting air preserves the shape of the outer membrane, enabling the gas balloon to endure external loads such as wind or snow without compromising structural integrity. The materials used for both membranes are selected based on their durability and resistance to environmental factors like UV radiation and temperature fluctuations.

Gas charge and discharge pipes are integrated into concrete foundations typically provided by clients. A safety valve prevents overpressure on the gas side, while a pressure control valve ensures consistent internal pressure during all operational phases. Filling levels are monitored through ultrasonic sensors and wire length measurement systems.

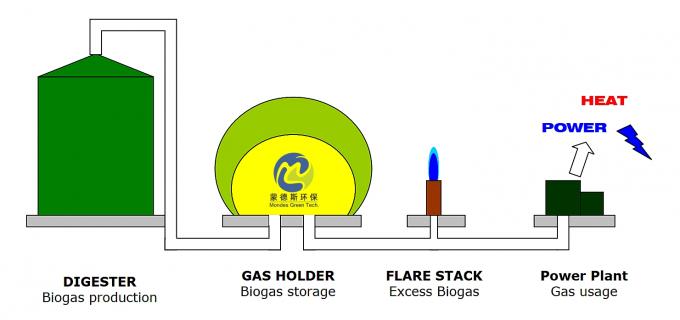

2000m³ Free Standing Dual Membrane Biogas Balloon

Main Technical Parameters

S/N	Items	Technical Value
1	Capacity	20~20,000m³
2	Design pressure	3mbar~25mbar
3	Operating pressure	3mbar~20mbar
4	Outer membrane thickness	0.74-1.20mm
5	Inner membrane thickness	0.74~1.20mm
6	Bottom membrane thickness	0.90mm
7	Max. wind load	32.6m/s
8	Max. snow load	30kg/m²
9	Applied temperature	-30℃ to +70℃
10	Design service life	≥20 years
11	Weld seam width	≥70mm
12	Methane permeability	≤200cm³ /m²d0.1MPa (23℃, 65% R.H.)
13	Flame retardancy	B1
14	Warranty	10 years
15	Country of Origin	China

Features

The critical inner gas-holding membrane operates independently of the outer membrane
Membranes are constructed from the highest quality materials available in the industry
Access for inspection of the inner membrane is consistently available
Airflow between the membranes is precisely regulated
A pressure sensor continuously monitors the air within the interstitial space between the membranes
Pressurization fans are designed to be spark-resistant and explosion-proof, ensuring operational safety
Comprehensive services encompass design, fabrication, installation, and commissioning phases
Installation timelines range from two to ten days for efficient project execution
Gasholder volumes vary from 20 m³ to 20,000 m³ to accommodate diverse storage needs

Shipment Method

By Aircargo: Different Airline for your optional with good price

By Sea: Different shipping company for your optional with good price

By Express: DHL, TNT, EMS etc.

You can choose your own shipping company
