Custom Color GFS Glass Fused To Steel Bolted Tank For Water And Wastewater Storage
Product Overview
Glass Fused to Steel Bolted Tank for Potable Water Storage represents a sound investment for any water management system. These tanks are engineered to deliver a secure and dependable source of clean drinking water for communities and businesses alike.
One of the key advantages is its exceptional durability and longevity. Constructed from high-quality steel materials, these tanks are built to withstand harsh weather conditions, corrosion, and wear and tear. As a result, they require minimal maintenance and can offer reliable service for 30 years.
Another benefit is their customizable design, allowing them to be tailored to meet specific requirements of each installation. With a wide range of sizes, shapes, and configurations available, it's possible to create a bespoke solution that aligns with the unique needs of any project.
All bolted steel potable water storage tanks are manufactured in compliance with stringent quality standards to ensure the highest levels of safety and reliability. This involves rigorous testing and inspection procedures to meet strict guidelines established by regulatory bodies.
Main Technical Parameters
| Parameter |
Specification |
| Coating color |
dark blue, dark green, white, and customized |
| A standard steel plate size |
effective size 2400mm x 1200 m |
| Steel plates thickness |
3mm - 18mm, depends on the diameter & height |
| Coating thickness |
0.25mm - 0.4mm, two coatings internal and external |
| Acid and alkalinity proof |
standard coating suits for PH3 - PH11 special coating suits for PH1 - PH14 |
| Adhesion |
3,450N/cm |
| Elastic |
same as steel sheet, around 500KN/mm |
| Hardness |
6.0 Mohs |
| Service life |
>30 years |
| Spark test |
>900 ~ 1500 V |
| Permeability |
gas and liquid impermeable |
| Easy to clean |
smooth, glossy, inert, anti-adhesion |
| Corrosion resistance |
excellent suitable for wastewater, salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds |
Advantages
- Short construction period
- Superior corrosion resistance, service life is more than 30 years
- Low project cost
- Tank volume can be easily expanded
- Beautiful appearance, color can be customized
- Not subject to weather conditions
- No need for big installation equipment
- Easily expand, dismantle, move

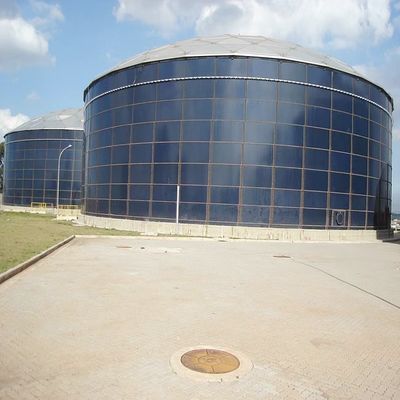

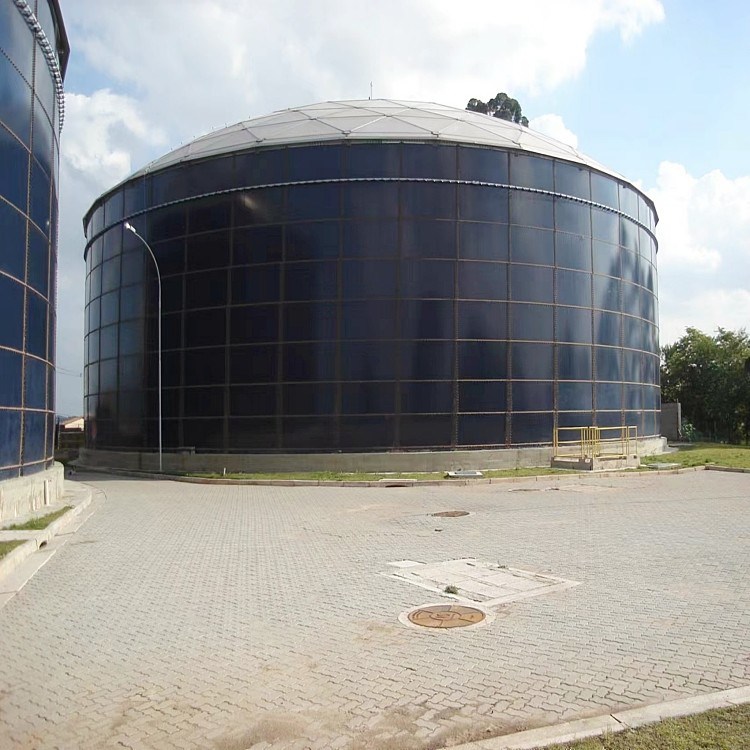

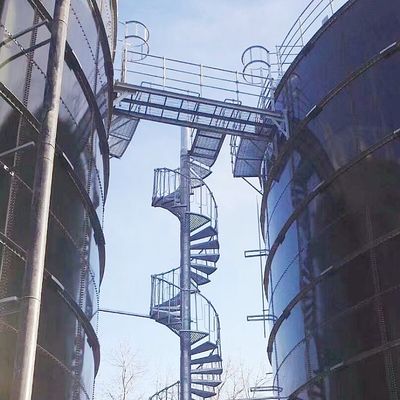

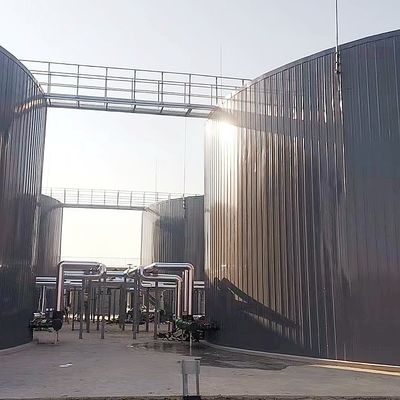

Product Show
Different Domes for GFS Bolted Steel Tank
Installation Procedure
Package
Double checking is required before packaging, confirm the plate's code and quality. The steel plates are separated with each other by PE foam, to avoid any damage on the coating surface. And the whole pallet is covered by a plastic film, tied by steel belt. Then the whole pallet is put inside a wooden box.
FAQ
Q1: What's your sample policy?
A: Samples is free for you, but customer has to pay for the transportation fee.
Q2: Could you offer relative technical support/consultant for customer?
A: Yes, we have professional engineers here for supporting any technical questions.
Q3: When could we contact you?
A: Any time! All your inquiry will be replied in 24 hours.
Q4: What is your advantage?
A: High quality, Competitive price, Professional technical supporting and Great service always here for you!
