| Place of Origin: | China |
| Brand Name: | YITIAN |
| Certification: | NSF/ANSI 61, CE, ISO9001:2015 |
| Model Number: | YITIAN-GFS2000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Please contact us |
| Packaging Details: | Angle Iron Frame + Tray + Collision Protection |
| Delivery Time: | 5~60 days |
| Payment Terms: | T/T,L/C,Western Union,MoneyGram |
| Supply Ability: | 20 sets per month |
| Durability: | 30+ Years | Customizable: | Yes |
|---|---|---|---|
| Material: | Glass Fused To Steel | Maintenance: | Low |
| Corrosion Resistance: | Excellent | Suitable For Various Applications: | Yes |
| Cost-Effective: | Yes | Modular Design: | Yes |
| Leak-Proof: | Yes | Installation Time: | 1/3 Of Traditional Tanks |
| Highlight: | dark blue glass fused bolted steel tanks,glass fused bolted steel tanks leak proof,drinking glass fused steel tanks |
||

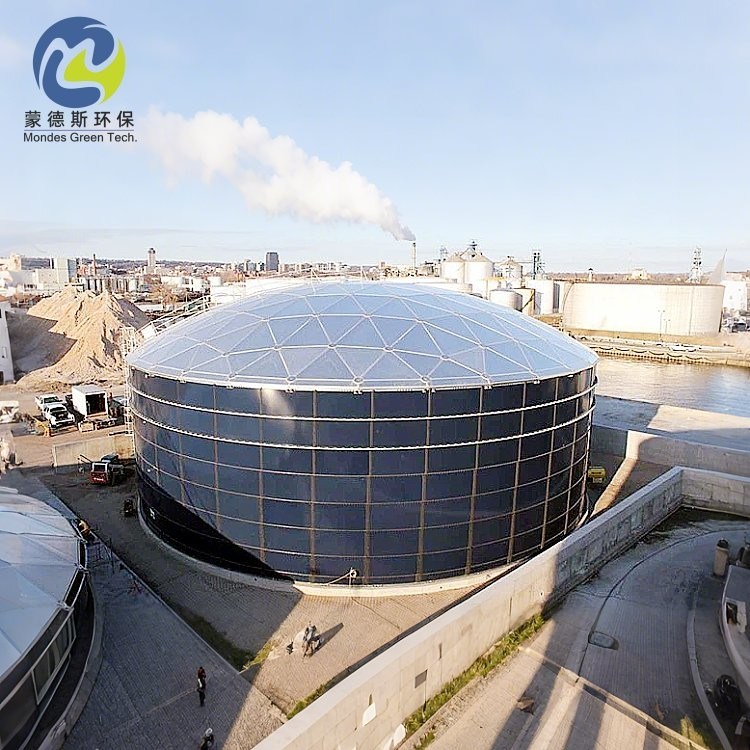

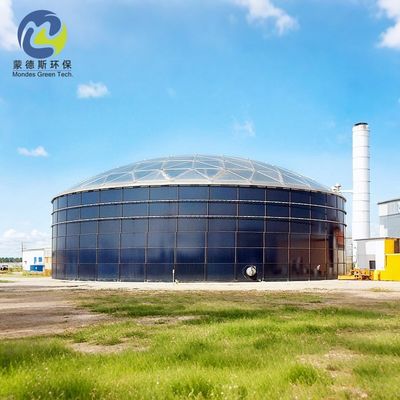

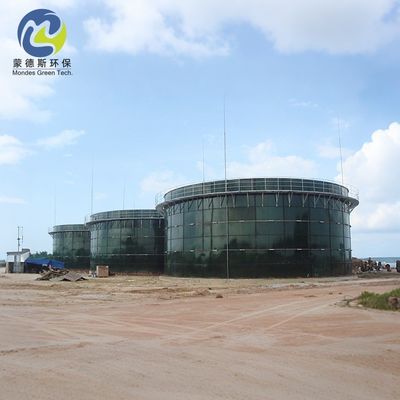

Glass-fused-to-steel (GFS) bolted tanks represent an advanced solution for drinking water storage, combining exceptional durability, reliability, and adaptability for industrial applications.
The core design integrates the structural integrity of steel with the chemical inertness and corrosion resistance of glass, creating a robust structure resistant to extreme conditions. The fusion process ensures seamless adhesion of the glass lining to the steel substrate, forming a monolithic, impervious structure.
![]()
Key advantages include:
| Parameter | Specification |
|---|---|
| Coating Color | Dark Blue, Dark Green Or Customized |
| Coating Thickness | 0.25-0.45mm |
| Acid And Alkalinity Proof | Standard PH 3-11, Special PH 1-14 |
| Adhesion | 3.450N/cm |
| Hardness | 6.0 (mohs) |
| Service Life | ≥30 Years |
| Holiday Test | 900 ~ 1500v |
| Permeability | Gas Liquid Impermeable |
| Easy To Clean | Smooth, Anti-adhesion, Glossy, Inert |
| Elasticity | Same as steel plate, about 500KN/mm |
| Corrosion Resistance | Excellent, suitable for wastewater, concentrated brine, sea water, high sulfur crude oil, salt spray, organic and inorganic compounds |
Premium Materials: Crafted from top-grade steel with superior quality enamel coating for excellent resistance to corrosion, chemicals, and high temperatures.
Stringent Quality Control: Rigorous testing for enamel thickness, adhesion, and surface smoothness ensures long-term, trouble-free service.
![]()
