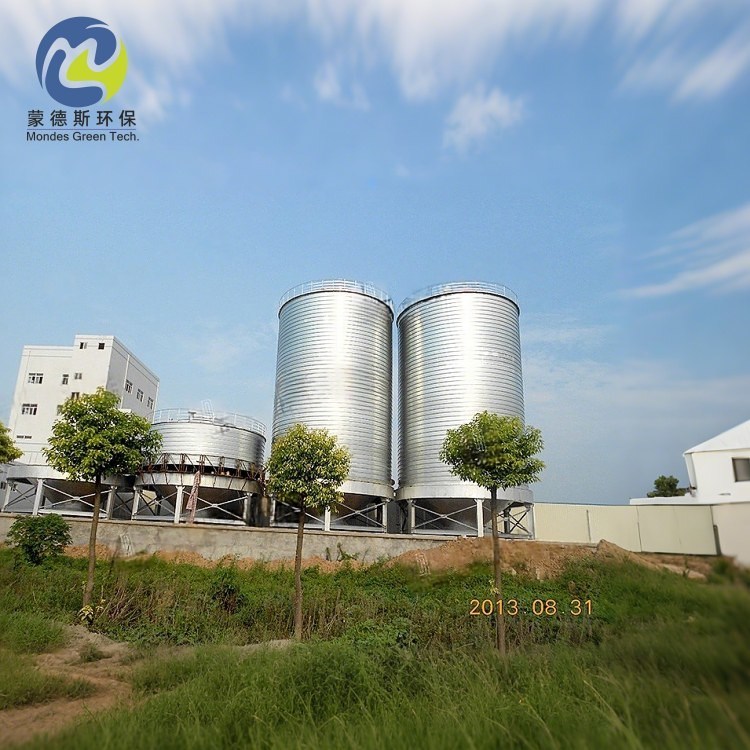

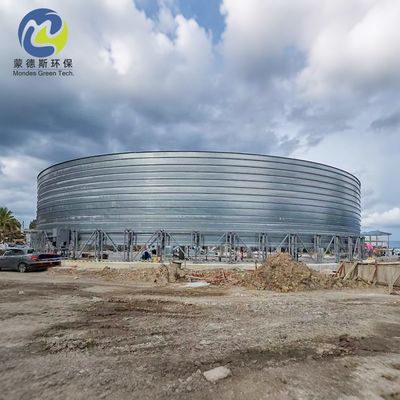

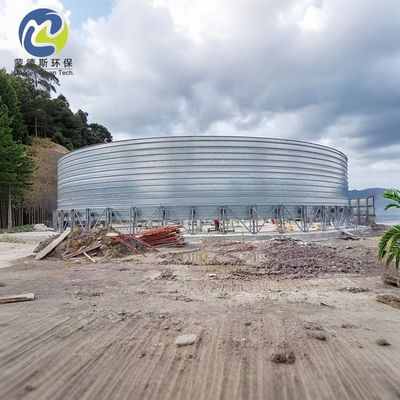

Cylindrical Stainless Steel Lipp Liquid Storage Tanks for Edible Oil Storage
Lipp Liquid Storage Tanks for Palm Oil
Revolutionizing efficiency in edible oil production, Lipp liquid storage tanks with patented spiral-seam technology offer a transformative solution for palm oil mills.
Why Lipp Tanks Outperform Conventional Storage in Palm Oil
Palm oil storage demands systems that withstand:
- High Temperatures: Crude palm oil (CPO) stored at 50-60°C
- Fatty Acid Corrosion: Free fatty acids (FFA) up to 5% degrade mild steel
- Sanitary Compliance: Zero bacterial contamination for food-grade oils
Lipp tanks address these challenges through:
- 316L Stainless Steel Construction: Resists FFAs and moisture-induced rust (pH 4-9) with electropolished interiors meeting FDA/WHO hygiene standards
- Seamless Spiral Design: Eliminates welded joints, the primary failure point in palm oil tanks
- Thermal Insulation: Optional polyurethane foam (PUR) layers maintain CPO viscosity
Technical Comparison: Lipp Tanks vs. Alternatives
| Parameter |
Lipp Tanks |
Welded Steel Tanks |
Concrete Tanks |
| Corrosion Resistance |
20+ years (316L SS) |
5-8 years (epoxy-coated) |
10-15 years (acid-resistant lining) |
| Installation Time |
1 week (500 m³) |
10-12 weeks |
6-9 months |
| Temperature Control |
Built-in insulation options |
Requires external jacketing |
Poor thermal retention |
| Cleaning Efficiency |
CIP (Clean-in-Place) compatible |
Manual scrubbing needed |
High contamination risk |
| Lifetime Cost (per m³) |
USD1,200- USD1,800 |
USD2,500- USD3,500 |
USD1,800- USD2,200 |
Optimizing Palm Oil Mills with Lipp Tanks
- Crude Palm Oil (CPO) Storage: Maintain CPO at 55°C to prevent stearin crystallization with slope-bottom tanks enabling complete drainage
- Palm Kernel Oil (PKO) Processing: Store NaOH (3-5%) for kernel neutralization without tank degradation
- Effluent Management: Capture palm oil mill effluent (POME) with biogas-ready Lipp digesters
Case Study: A 500 TPD Mill in Indonesia
A Sumatran mill upgraded to Lipp tanks for CPO and POME storage. Results over 3 years:
- FFA Reduction: From 5.2% to 3.8% due to inert stainless surfaces
- Energy Savings: 30% less steam used for tank heating (insulated models)
- ROI: 3.5 years via reduced maintenance and CPO quality premiums
FAQs About Lipp Tanks in Palm Oil Applications
Q1: Can Lipp tanks handle sterile storage for RBD palm oil?
Yes. Specify tanks with ASME BPE-compliant finishes for refined, bleached, and deodorized (RBD) oil.
Q2: What is the maximum diameter for slope-bottom tanks?
Up to 30 meters. Larger diameters require flat bottoms with conical inserts.
Q3: How are Lipp tanks protected against external corrosion in tropical climates?
Galvanized steel exteriors resist humidity and salt spray (ISO 9227 certified).
Q4: Are explosion-proof designs available for biogas applications?
Yes. Pressure-rated models (up to 300 mbar) with flame arrestors meet ATEX directives.
Future-Forward Innovations
- Carbon-Neutral Materials: Recycled stainless steel (60%+ reclaimed content) cuts embodied carbon by 40%
- Modular Expansion: Stackable units allow mills to scale storage as production grows
Conclusion
Lipp liquid storage tanks redefine palm oil storage by merging German engineering precision with tropical operational realities. These tanks slash lifecycle costs, enhance oil quality, and future-proof facilities against tightening sustainability regulations.
