Name: Customizable Composite SS Bolted Tanks High Strength Leak Proof For Water Storage
Brand: Sichuan Mondes Green Technology Co.,Ltd
SKU: MDS-CSS2000
Availability: InStock

Home Products Stainless Steel Bolted Tanks

Customizable Composite SS Bolted Tanks High Strength Leak Proof For Water Storage

Product Details:

Place of Origin:	China
Brand Name:	MDS
Certification:	NSF/ANSI 61, CE, ISO9001:2015
Model Number:	MDS-CSS2000

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Please contact us
Packaging Details:	Angle Iron Frame + Tray + Collision Protection
Delivery Time:	5~60 days
Payment Terms:	T/T,L/C,MoneyGram,Western Union
Supply Ability:	10 sets per month

Contact Now Chat Now

Detailed Product Description

Durability:	Excellent	Leak-Proof:	Yes
Customization:	Available	Eco-Friendly:	Recyclable
Seismic Rating:	High	Maintenance:	Low
Material:	Stainless Steel	Corrosion Resistance:	High
Tank Type:	Bolted
Highlight:	High Strength SS Bolted Tanks , Composite SS Bolted Tanks , Stainless Steel Bolted Tanks Leak Proof

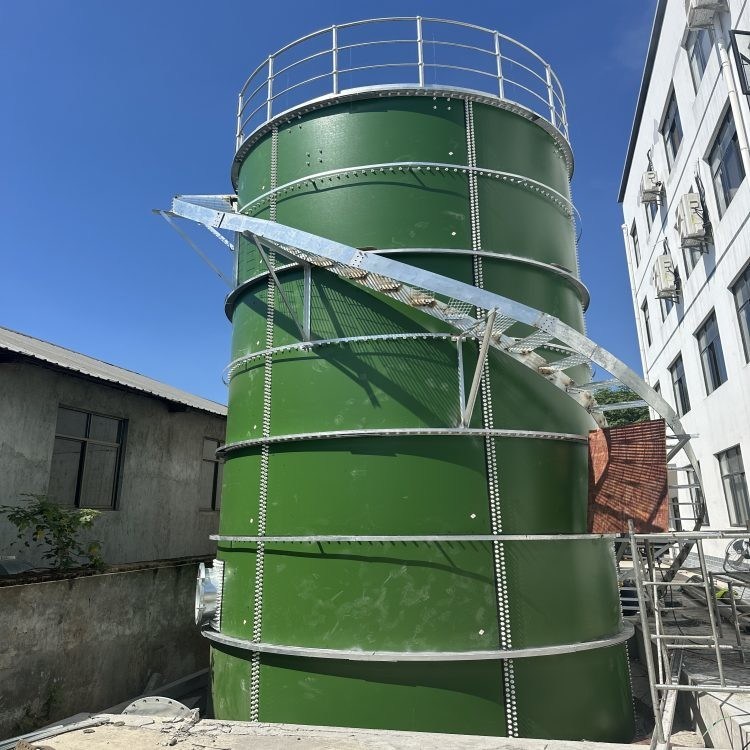

Customizable Composite Stainless Steel Bolted Tanks High Strength For Water Storage

Product Overview

Our Customizable Composite Stainless Steel Bolted Tank is engineered for potable water storage, edible oils, wastewater, grains, and various liquid/solid chemical products. Its innovative construction combines stainless steel with carbon steel substrate for superior corrosion resistance and structural integrity.

Structural Features

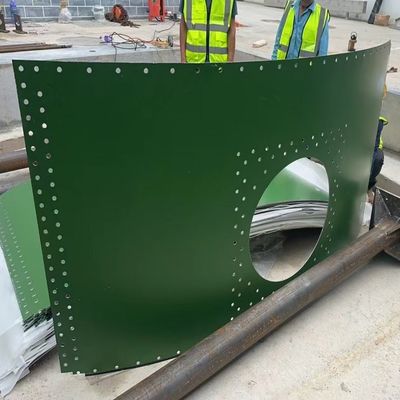

The tank consists of three main components: dome (stainless steel, composite steel, or aluminum alloy), tank walls, and bottom plates (stainless steel composite). The composite plates feature a carbon steel base (Q235B, Q245R, Q355B) for strength and stainless steel overlay (SS304, SS316L) for corrosion resistance.

Key Advantages

Corrosion Resistance: Withstands harsh environments without degradation
Flexible Assembly: Customizable dimensions and shapes to meet specific requirements
Rapid Construction: Quick on-site assembly reduces project timelines
High Strength: Capable of enduring substantial pressure and loads
Low Maintenance: Minimal upkeep requirements reduce long-term costs

Technical Specifications

Parameter	Specification
Color Options	White, Green, Aluminum Alloy, or Customized
Base Material Thickness	3-18mm
External Layer (Aluminum Alloy) Thickness	0.25mm
Internal Layer (SS304/SS316L) Thickness	0.25mm
Acid/Alkali Resistance	Standard PH 3-11, Special PH 1-14
Service Life	≥30 Years
Permeability	Gas and Liquid Impermeable
Surface Properties	Anti-adhesion, Glossy, Inert (Easy to Clean)

Applications

Liquid storage: Drinking water, wastewater, sewage sludge, edible oils
Gas containment: Bio gas, sewage gas, landfill gas
Solid storage: Grains, chemical products, cement
