Name: White 500m3 Double Membrane Gas Holder , Gas Dome For Methane Storage
Brand: Sichuan Mondes Green Technology Co.,Ltd
SKU: MDS-TMG500
Availability: InStock

Home Products Double Membrane Gas Storage Tank

White 500m3 Double Membrane Gas Holder , Gas Dome For Methane Storage

Product Details:

Place of Origin:	China
Brand Name:	MDS
Certification:	CE, ISO9001:2015
Model Number:	MDS-TMG500

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Please contact us
Packaging Details:	Standard export wooden box
Delivery Time:	5~60 days
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now Chat Now

Detailed Product Description

Warranty:	2 Years	Color:	White Or Customized
After Warranty Service:	Video Technical Support	Temperature Range:	-30℃~+70℃
Uv Resistance:	≥6	Lifespan:	≥20 Years
Material:	High-strength Polyester Fabric	Installation Duration:	8-15 Days
Function:	Store And Collect Biogas	Application:	Biogas Plant
Control Mode:	Automatic Control	Gas Storage:	High Gas Storage Efficiency
Highlight:	500m3 double membrane gas holder , white double membrane gas holder , white double membrane biogas holder

White 500m³ Double Membrane Gas Holder, Gas Dome For Methane Storage

Product Overview

The 500m³ Dual Membrane Gas Domes for Methane Storage provide a specialized solution for safely containing methane gas, a primary component of biogas. These domes feature two membrane layers that enhance structural integrity and safety beyond traditional single-layer systems.

The outer membrane protects against environmental factors while the inner membrane provides additional containment security, minimizing methane emissions. Each gas supply and conduction system operates independently, with a standard safety valve for pressure regulation.

The system includes an air blower that maintains reservoir pressure to withstand external forces like wind and snow loads. A pressure control valve ensures operational stability, while the level measurement system optimizes storage volume utilization and controls connected units.

Main Technical Parameters

S/N	Item	Parameter Values	Unit
1	Capacity	20~20,000	m³
2	Internal Pressure	≤20	mbar
3	Appearance	Smooth, elastic	---
4	Methane permeability	≤250	cm³/m².24h.0.1MPa
5	Weld seams	≥70	mm
6	Bottom edge	Complete occlusion without leakage	---
7	Embedded parts	10# channel steel, HDG	---
8	Surface resistance	≤109	Ω
9	Inspection window	DN300	---
10	Sealing strip	Special rubber gasket	---
11	Connecting bolt	High-strength bolt, HDG	---

Advantages

Double membrane design for diverse applications
Flexible installation: free standing or rim mounted
Customizable to meet specific process and environmental requirements
Adaptable to various gas pressures, storage volumes, and production rates
Rapid onsite installation with trained teams
Compatible with central mixers and bridge systems
Suitable for converting existing tanks to digesters

Main Components

Quality membranes: inner, outer, and bottom layers
Explosion-proof blower
Explosion-proof pressure sensor
Control cabinet
Explosion-proof ultrasonic level meter
Outer membrane pressure regulator
Inner membrane safety water seal

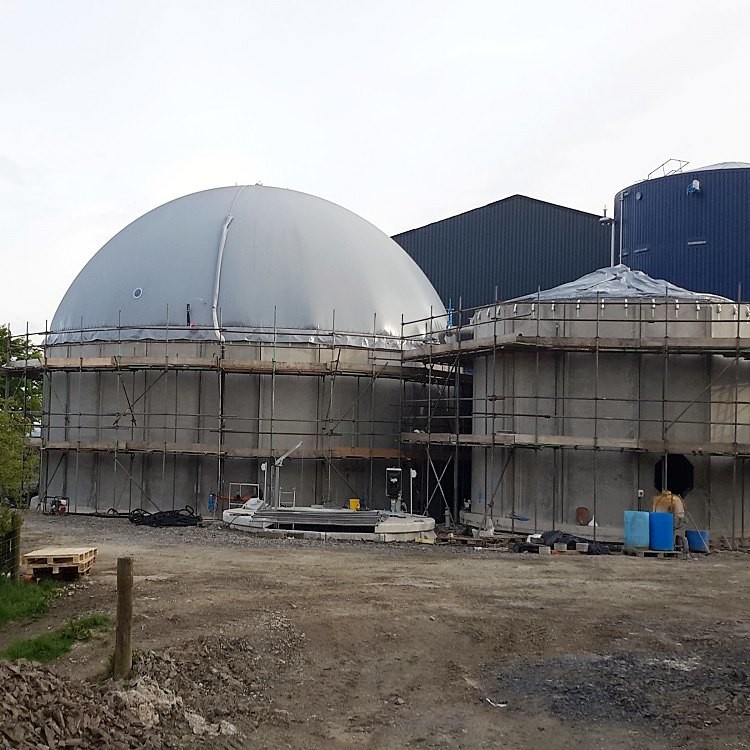

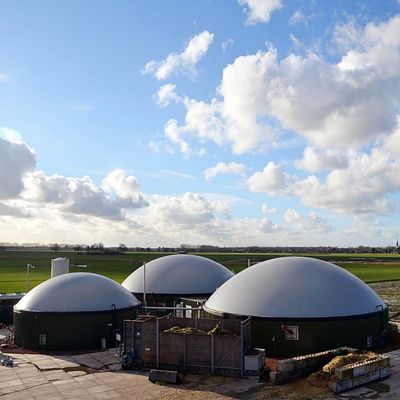

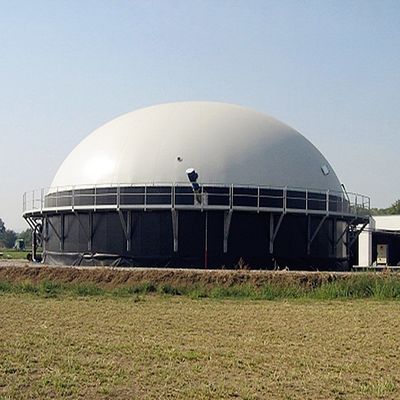

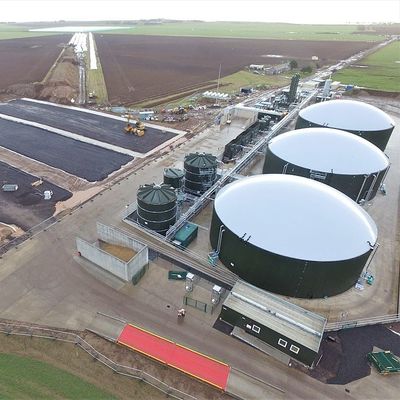

Product Show
