Name: 3000M3 Green Biogas Dome Double Membrane Automatic Control Bio Gas Holder
Brand: Sichuan Mondes Green Technology Co.,Ltd
SKU: MDS-TMG3000
Availability: InStock

Home Products Double Membrane Gas Storage Tank

3000M3 Green Biogas Dome Double Membrane Automatic Control Bio Gas Holder

Product Details:

Place of Origin:	China
Brand Name:	MDS
Certification:	CE, ISO9001:2015
Model Number:	MDS-TMG3000

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Please contact us
Packaging Details:	Standard export wooden box
Delivery Time:	5~60 days
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now Chat Now

Detailed Product Description

Shape:	Sphere/Rectangle/Square	Safety System:	Pressure Relief Valve And Overpressure Alarm
Application:	Suitable For Various Biogas Projects	Structure:	Double Membrane Structure
Maintenance:	Low Maintenance Cost	Temperature Resistance:	From -30℃ To 70℃
Inflation System:	Automatic Air Inflation System	Control Mode:	Automatic Control
After Warranty Service:	Video Technical Support	Size:	Customized
Installation:	Easy And Quick Installation
Highlight:	green biogas dome , biogas dome double membrane , automatic control bio gas holder

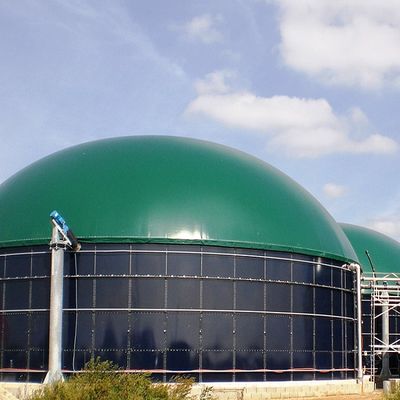

3000M³ Green Double Membrane Biogas Dome with Automatic Control

Product Overview

Our 3000m³ Green Double Membrane Biogas Dome is compatible with all new or refurbished steel and concrete digester tanks, regardless of shape or size. This adaptable solution offers substantial cost savings compared to conventional gas storage methods while maintaining superior performance standards.

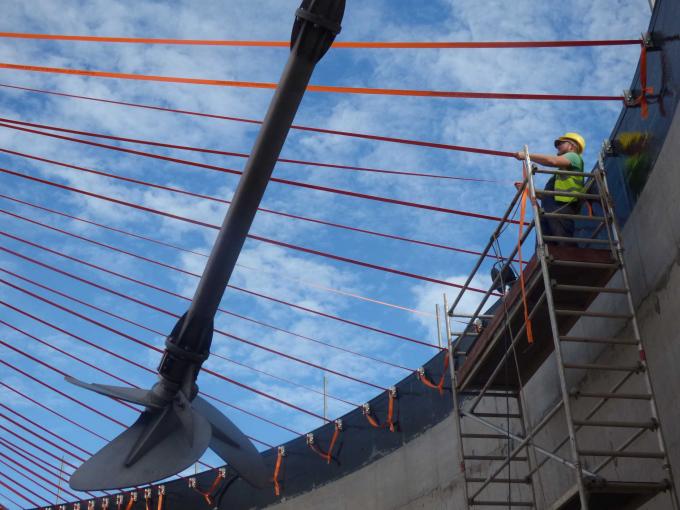

3000m³ Green Double Membrane Biogas Dome installation

The installation process is quick and efficient, minimizing downtime during system upgrades. We recommend using a center post net support system to maintain structural integrity and prevent membrane deflation into the digester contents, ensuring reliable gas collection and consistent pressure levels.

Main Technical Parameters

S/N	Items	Parameter Values
1	Capacity	Customized
2	Design pressure	3mbar~20mbar
3	Operating pressure	3mbar~15mbar
4	Outer membrane thickness	0.74-1.20mm
5	Inner membrane thickness	0.74~1.20mm
6	Max. wind load	32.6m/s
7	Max. snow load	30kg/m²
8	Applied temperature	-30℃ to +70℃
9	Design service life	≥20 years
10	Weld seam width	≥70mm
11	Methane permeability	≤200cm³ /m²d0.1MPa (23℃, 65% R.H.)
12	Flame retardancy	B1
13	Warranty	10 years
14	Country of Origin	China

Main Features

High Safety Factor: Designed for extreme conditions with overpressure safety valve and biogas leakage detection system.
Long Service Life: Inner membrane lasts over 25 years, outer membrane over 20 years.
Quick Installation: Requires only basic concrete foundation, reducing time and labor costs.
Cost Efficient: Full tank volume utilization with lightweight construction that simplifies foundation requirements.
Aging Resistance: Excellent material durability requires professional handling during manufacturing and installation.
Multi-functional: Suitable for biogas projects, waste management, energy storage, and industrial gas applications.
Eco-friendly: Facilitates renewable energy collection, reducing pollution and energy waste.
Environmental Adaptability: High molecular weight materials provide corrosion resistance and weather durability.
Fire & Lightning Protection: Fireproofing, corrosion resistance, and lightning protection ensure safe operation in harsh environments.

Applications

Livestock farm

Brewery wastewater treatment

Beer wastewater treatment plant

Paper mill wastewater treatment

Urban sewage treatment

Garbage disposal

Food waste treatment

Food wastewater treatment

Crops' waste treatment

Food factory sewage treatment

Product Showcase
